Global Sources Hong Kong Shows/Daftar Produk/Motherboard Desktop Gaming ESONIC ATX B850 AM5 9000 DDR5 4*SATA Baru, Dukungan OEM

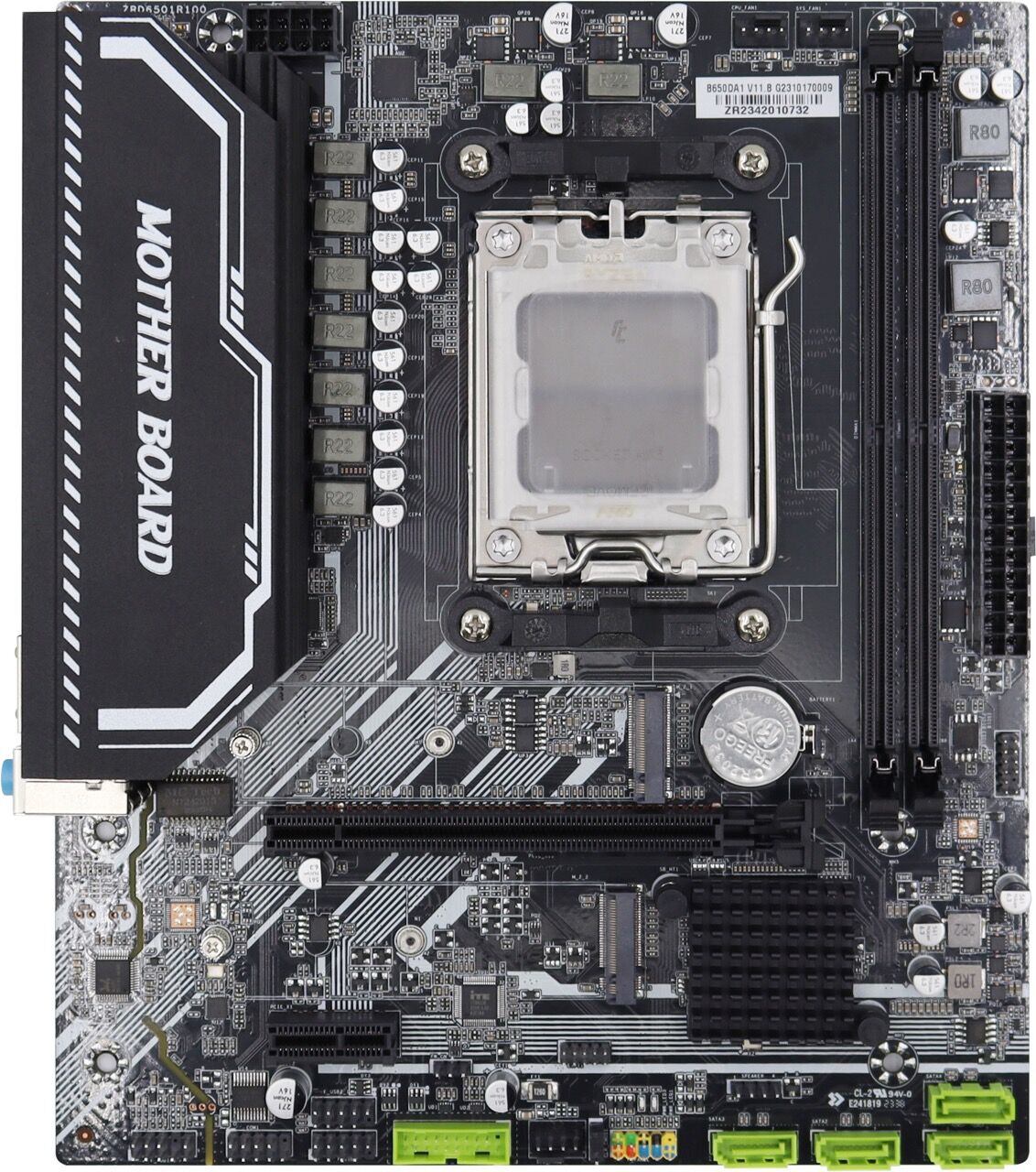

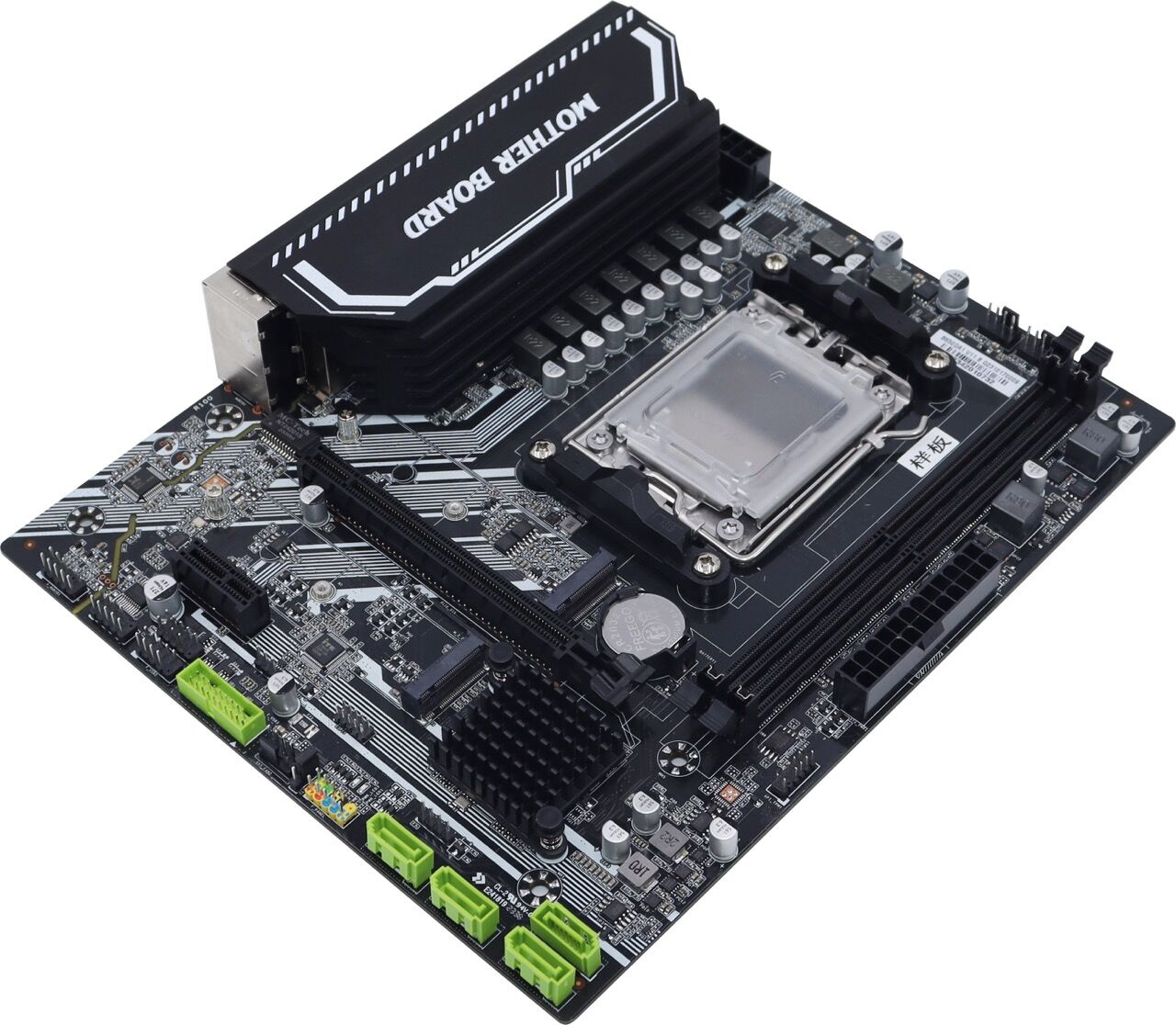

Motherboard Desktop Gaming ESONIC ATX B850 AM5 9000 DDR5 4*SATA Baru, Dukungan OEM
Informasi Produk
Nomor Model
B850DA1V11
Nama Merek
ESONIC
Pesanan Kecil
Diterima
Spesifikasi Utama / Fitur Khusus
| Dukungan prosesor | AMD®Soket AM5, mendukung AMD®Ryzen 7000, prosesor 8000,9000 Serises |
| Chipset | Cip B850 |
| Dukungan memori | 2 * DDR5 4800/5600 UDIMM maks 96GB |
| LAN | Mendukung jaringan Realtek Realtek 2500M pilihan jaringan Realtek Network 1000M |
| Audio | Mendukung Audio definisi tinggi Realtek ALC897 |
| Penyimpanan | 4 * port SATA3.0 6Gb/sSupport 2 * M.2 _ SSD (M key NVME 2242/2280) mendukung 1.m.2_wifi (E key) |

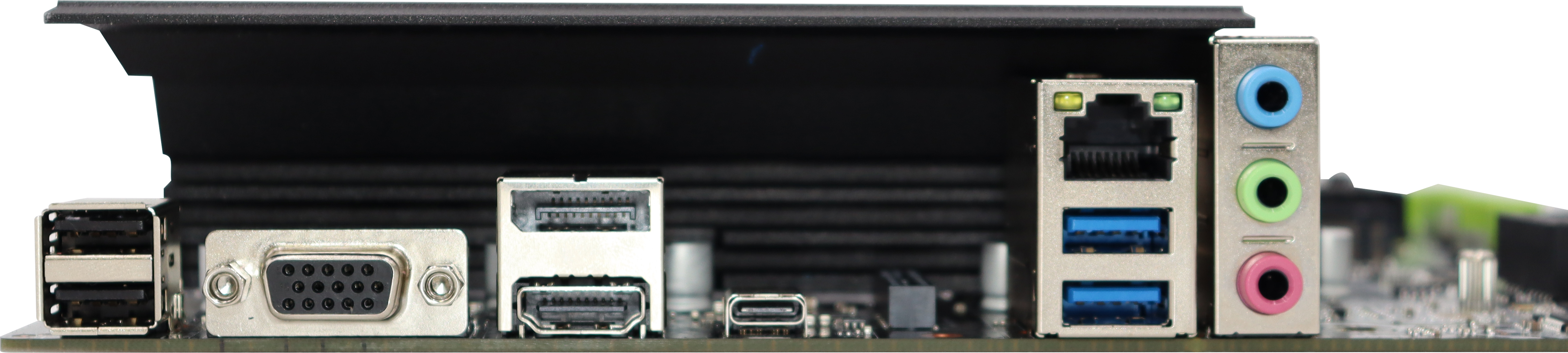

| Panel belakang I/O | 1 * HDMI port 2 * USB2.0 port (opsional KB_MS) 1 * VGA port (opsional HDMI) 2 * port port 1 * AUDIO_JACK(LINE_IN/LINE_OUT/MIC_IN)1 * DP port 1 * type-c port 1 * M.2 _ slot WIFI 1 * RJ45 port |
| Faktor bentuk | Micro-atx (192mm * 230mm) ,6 lubang pemasangan |
| Pinhead On-Board | 1 * konektor COM 1 * konektor CLR_CMOS 1 * konektor daya ATX_24P 1 * konektor F_PANEL 1 * konektor daya ATX_8P 1 * konektor ESPI 1 * konektor SPEAKER 1 * konektor TPM (modul TPM opsional) 1 * F_AUDIO connector 1 * F_USB3.0 connector ∟support 2 * USB3.0 port 2 * F_USB2.0 connector ∟support 4 * USB2.0 port 2 * SYS_FAN connector 1 * CPU_FAN connector |
| Slot | 1 * slot PCIe 4.0 X16 1 * slot PCIe 3.0 X1 |
| Dukungan prosesor | AMD®Soket AM5, mendukung AMD®Ryzen 7000, prosesor 8000,9000 Serises |
| Chipset | Cip B850 |
| Dukungan memori | 2 * DDR5 4800/5600 UDIMM maks 96GB |
| LAN | Mendukung jaringan Realtek Realtek 2500M pilihan jaringan Realtek Network 1000M |
| Audio | Mendukung Audio definisi tinggi Realtek ALC897 |
| Penyimpanan | 4 * port SATA3.0 6Gb/sSupport 2 * M.2 _ SSD (M key NVME 2242/2280) mendukung 1.m.2_wifi (E key) |
| Panel belakang I/O | 1 * HDMI port 2 * USB2.0 port (opsional KB_MS) 1 * VGA port (opsional HDMI) 2 * port port 1 * AUDIO_JACK(LINE_IN/LINE_OUT/MIC_IN)1 * DP port 1 * type-c port 1 * M.2 _ slot WIFI 1 * RJ45 port |
| Faktor bentuk | Micro-atx (192mm * 230mm) ,6 lubang pemasangan |
| Pinhead On-Board | 1 * konektor COM 1 * konektor CLR_CMOS 1 * konektor daya ATX_24P 1 * konektor F_PANEL 1 * konektor daya ATX_8P 1 * konektor ESPI 1 * konektor SPEAKER 1 * konektor TPM (modul TPM opsional) 1 * F_AUDIO connector 1 * F_USB3.0 connector ∟support 2 * USB3.0 port 2 * F_USB2.0 connector ∟support 4 * USB2.0 port 2 * SYS_FAN connector 1 * CPU_FAN connector |
| Slot | 1 * slot PCIe 4.0 X16 1 * slot PCIe 3.0 X1 |
