Global Sources Hong Kong Shows/Daftar Produk/Motherboard ESONIC HM670 Onboard dengan CPU Intel 12600HX, Combo 2 DDR4 Mini ITX, Mendukung TPM
Motherboard ESONIC HM670 Onboard dengan CPU Intel 12600HX, Combo 2 DDR4 Mini ITX, Mendukung TPM
Informasi Produk
Nomor Model
HM670AA1
Nama Merek
ESONIC MOTHERBOARD
Asal
Cina
Pesanan Kecil
Diterima
Spesifikasi Utama / Fitur Khusus
| Dukungan prosesor | Intel®1212 Alder Lake-HX Core™Seri prosesor |
| Chipset | Intel®Chipset HM670 |
| Dukungan memori | 2 * Slot SODIMM DDR4 3200MHz, hingga 64GB |
| Tampilan Output | 2 * port HDMI 1 * port DP opsional VGA/COM port1 * konektor LVDS |
| LAN | 1 * Realtek Realtek 10/100/1000Mbps Ethernet |
| Audio | 1 * Realtek®Pengontrol audio ketepatan tinggi ALC897 |
| Penyimpanan | 1 * M.2 _ SSD M key Type 2280/2242 mendukung PCIeX4/SATA SSD 1 * SATA3.0 6.0 Gb/s port |

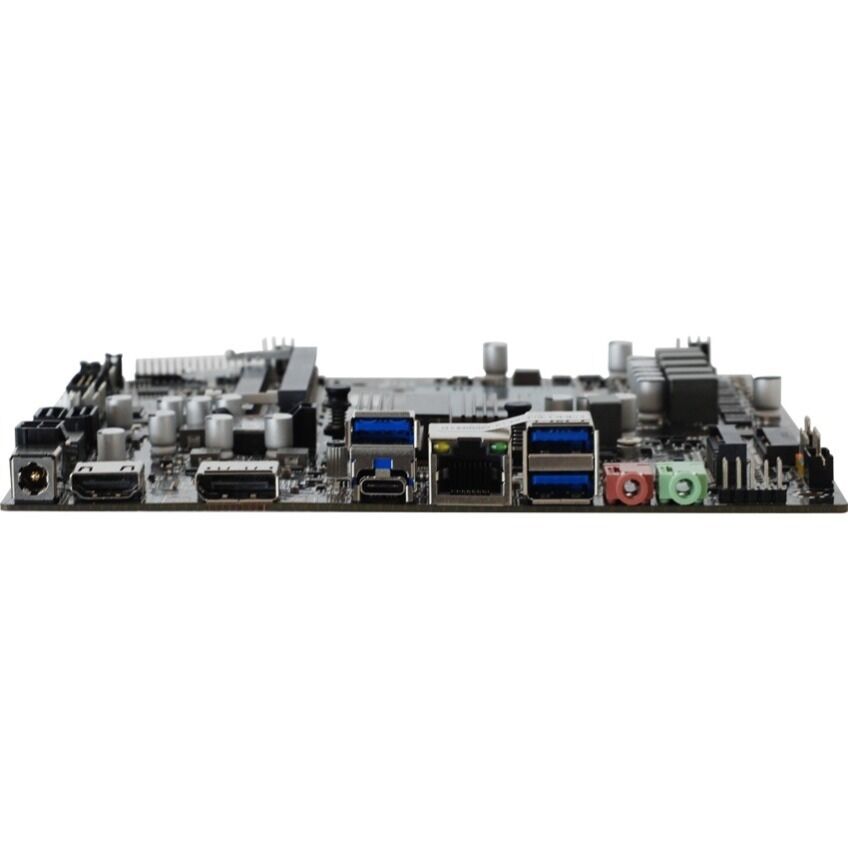

| Panel belakang I/O | 1 * DC-IN port1 * HDMI port1 * USB3.2 Gen2 port1 * type-c port1 * DP port opsional VGA/COM port1 * RJ45 port2 * USB3.2 Gen2 ports1 * LINE_OUT |
| USB | 1 * type-c 10Gb port 5 * USB3.2 Gen 2 ports4 * USB2.0 port |
| Jenis soket | ONBOARD CPU |
| Faktor bentuk | Mini-itx (17CM * 17CM) |

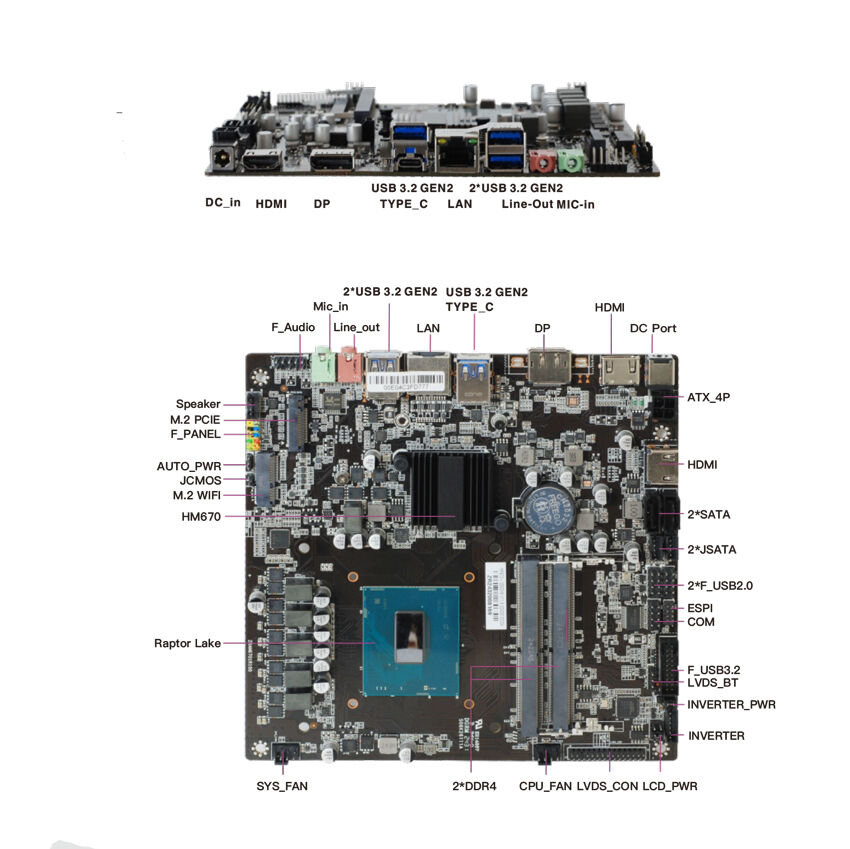

| Pinhead On-Board | 1 * konektor audio f_1 * konektor SPEAKER 2 * konektor JSATA 1 * konektor panel F_PANEL 1 * konektor perangkat keras TPM 1 * F_USB3.2 mendukung 2 * USB3.2 Gen ports2 * F_USB2.0 Connect support 4 * USB2.0 ports1 * AUTO_PWR Connect 1 * JCMOS konektor 1 * CPU_FAN 4pconnect 1 * SYS_FAN 4pconnect 1 * eSPI konektor 1 * LVDS_BT konektor 1 * INVERTER konektor 1 * LVDS 1 * LCD_PWR konektor 1 * HDMI Porta 1 * ATX_4P |
| Dukungan prosesor | Intel®1212 Alder Lake-HX Core™Seri prosesor |
| Chipset | Intel®Chipset HM670 |
| Dukungan memori | 2 * Slot SODIMM DDR4 3200MHz, hingga 64GB |
| Tampilan Output | 2 * port HDMI 1 * port DP opsional VGA/COM port1 * konektor LVDS |
| LAN | 1 * Realtek Realtek 10/100/1000Mbps Ethernet |
| Audio | 1 * Realtek®Pengontrol audio ketepatan tinggi ALC897 |
| Penyimpanan | 1 * M.2 _ SSD M key Type 2280/2242 mendukung PCIeX4/SATA SSD 1 * SATA3.0 6.0 Gb/s port |
| Panel belakang I/O | 1 * DC-IN port1 * HDMI port1 * USB3.2 Gen2 port1 * type-c port1 * DP port opsional VGA/COM port1 * RJ45 port2 * USB3.2 Gen2 ports1 * LINE_OUT |
| USB | 1 * type-c 10Gb port 5 * USB3.2 Gen 2 ports4 * USB2.0 port |
| Jenis soket | ONBOARD CPU |
| Faktor bentuk | Mini-itx (17CM * 17CM) |
| Pinhead On-Board | 1 * konektor audio f_1 * konektor SPEAKER 2 * konektor JSATA 1 * konektor panel F_PANEL 1 * konektor perangkat keras TPM 1 * F_USB3.2 mendukung 2 * USB3.2 Gen ports2 * F_USB2.0 Connect support 4 * USB2.0 ports1 * AUTO_PWR Connect 1 * JCMOS konektor 1 * CPU_FAN 4pconnect 1 * SYS_FAN 4pconnect 1 * eSPI konektor 1 * LVDS_BT konektor 1 * INVERTER konektor 1 * LVDS 1 * LCD_PWR konektor 1 * HDMI Porta 1 * ATX_4P |
